Revit Section Box Draw in Plan

Fun fact: I wrote this post in-flight between Minneapolis and Amsterdam, in route to visit my family'southward past Russian exchange students--and ultimately posted this from St. Petersburg, Russia. I had mentioned this impending trip in a speaker spotlight interview for BILT-NA in Toronto.

There are a number of tips and tricks related to Revit'south Section Box characteristic. I volition share several of them in this post. Please add any additional tips you may have in the comments section below.

A Section Box can be activated in a 3D or Photographic camera view via Properties as shown in the paradigm below.

In one case activated, and selected, each of the six sides of the Section Box can be adjusted using the grips. The grips are ever centered on each face up.

About those grips… they tin can be hard to find and tricky to select. Knowing they are always in the center helps in locating them. If you click and miss the grip, the Section Box deselects—which is a pain. Discover the grip is composed of ii arrows? If yous single-click one side, or the other, the Department Box face will suit a slight amount in the management selected.

In addition to the 6 grips, there is also a quick access Rotation icon, see the prototype higher up.

For more than control in sizing and rotating the Section Box, I like to adapt it in program, elevation and section views. You can make the Section Box visible past selecting information technology in the 3D view and then using Ctrl+Tab to step through the open views. This requires the programme or elevation view to already be open up. Additionally, the Department Box will become deselected if you step into another projection or family unit.

Another option is to open the program or elevation view and then right-click on the 3D view in the Projection Browser as shown in the prototype beneath. Whatever 3D or Camera view with Department Box checked will show this option.

Once selected, you lot can drag a side to exist more accurately centered on a wall (in program) or above/beneath a flooring (in elevation).

When the Department Box is selected, in a plan view, use the rotate control. The angled element in the side by side two images is a good example of when rotating a Department Box tin can exist helpful.

In this example, the floor cutting aligns with the element and the adjacent columns are excluded.

Another bully way to leverage the Department Box tool is via the Selection Box command. Select ane or more than elements, as in the image below, and and so click the Option Box command.

The result is your default 3D view is opened and the Section Box is turned on and adjusted around the selected elements as shown in the next image.

In general, I like to think of this as a "throw-away" Section Box. Seeing equally it is practical to the default 3D view, I am guessing that was the developers intent as well. When done with this Section Box, simply plow information technology off. A view does non call up a previous position of an adjusted Section Box… thus, whenever it is toggled back on, it volition reset to marshal with the extents of the model. If you want to save a Section Box adjustment, for future review, or to place on a sheet, just brand a copy of the default 3D view.

Of course, the Section Box tin be adjusted as needed,,,

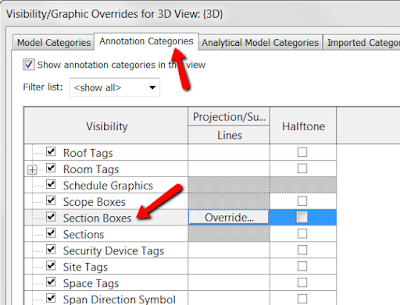

If the cropped view will be placed on a sheet you may want to turn off the Department Box visibility via Visibility/Graphics Overrides.

As long as the original element(s) is inside the Section Box, information technology is possible to use the Readapt Elementscontrol to preposition items exterior of the Section Box as shown in the image below.
